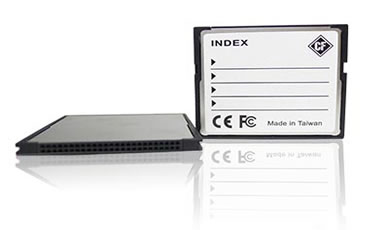

  Fudia industrial grade CompactFlash Cards CFx700P series are excellent flash-memory storage media for high-end consumer devices, embedded system applications, industrial PCs, military supply or aviation industry which need good-performance and high-reliability solid-state storage solutions.
Specifications
Flash Type SLC MLC
43 n.m. 32 n.m.
Capacity 1 GB ~ 16 GB 4GB ~ 64 GB *
Host interface support CompactFlash specification version 3.0 and 4.1.
PC Card standard release 8.0
IDE standard interface.
PCMCIA/IDE interface.
Read/Write (Max.)Performance Read: 52 MB/s
Write: 50 MB/s
Read: 40 MB/s Write: 20 MB/s
1T RISC uP8051 RAM Mode Internal RAM 256 Bytes.
External RAM 24 KB (On Chip)
Operation Temperature Normal temperature series → 0 ~ +70°C
Wide temperature series → - 40 ~ +85°C
Storage Temperature
Normal temperature series → -40 ~ +85°C
Wide temperature series → -40 ~ +85°C
NAND Flash Interface SLC and MLC NAND flash memory.
4 KB / 8 KB data per page NAND flash memory
NAND Flash Memory Interface
Hardware ECC circuit, 48 bits per 2 KB
Support SRAM Buffer(Dual Buffer Mode) A Buffer (512 Words)
B Buffer (512 Words)
CIS Buffer (256 Words)
System Features Light weight and noiseless
Implemented with automatic error detection and retry capability.
Support of power down commands and idle modes
Compatible with PC card and socket services
Host interface: 8/16 bits access
Auto-detection of CF/ATA host interface
Vibration Resistance 20 G (80 ~ 2,000 HZ)
Shock Resistance 1,500 G (0.5 msec)
Data Transfer Mode PIO mode 6
Multiword DMA mode 4
PCMCIA Ultra DMA Mode 5
Ultra DMA Mode 6
Power-saving implementation
Certificates Acquired RoHS \ WHQL \ CE \ FCC
Remarks
*MLC products will be produced upon requested only.
