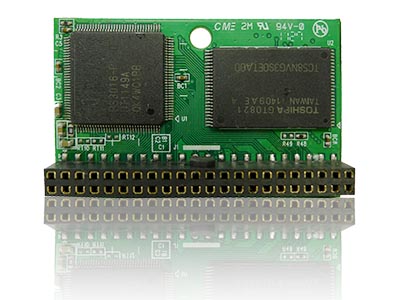

Fudia industrial grade IDE Flash Modules FDM700P series are non-volatile, solid state data storage disk. Given the advantages of lower power consumption, greater ruggedness, higher MTBF and other attracting features, Solid State Drive (SSD) is gradually becoming a mainstream to replace conventional Hard Disk Drive (HDD).
Due to lack of any mechanical components, SSD provides a more robust and cost effective storage solution for any embedded application. Since Fudia FDM700P series IDE Flash Modules come with a standard ATA interface which is fully compatible with traditional HDD, designers will find Fudia industrial grade IDE Flash Modules as an easy solution for integration in PC-based systems.
|
|
Specifications |
Flash Type |
SLC |
MLC |
43 n.m. |
32 n.m. |
Interface |
Standard ATA / IDE Bus Interface 512 Bytes / Sector |
Intelligent ATA / IDE Module |
Capacity |
44 pins : 1 GB ~ 16 GB |
44 pins : 2 GB ~ 64 GB * |
ATA command set compatible |
Read/Write (Max.) Performance |
Read: 86 MB/s |
Read: 80 MB/s |
Write: 80 MB/s |
Write: 45 MB/s |
Standard Female IDE Connector |
44 pins Horizontal |
Operation Temperature |
Normal temperature series → 0 ~ +70°C |
Wide temperature series → -40 ~ +85°C |
StorageTemperature |
Normal temperature series → -40 ~ +85°C |
Wide temperature series → -40 ~ +85°C |
Intelligent ATA/IDE Module |
Implements dynamic wear-leveling algorithms and static wear- leveling algorithms to increase endurance of flash media. |
Embedded Flash File System. |
ECC corrects up to 48 random bits error per 512 bytes. |
Data Transfer Mode |
PIO mode 4 |
Multiword DMA mode 2 |
Ultra DMA mode 6 |
Operating voltage |
DC 3.3 V / 5.0 V |
Certificates Acquired |
RoHS \ WHQL \ CE \ FCC |
Remarks |
*MLC products will be only produced upon requested. |
** Only 44 pins vertical type has housing |
