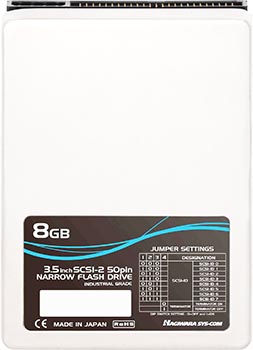

Fudia HFD35C series industrial grade SCSI SSD is made by Hagiwara Solutions which is top 3 industrial flash storage devices maker in Japan. Fudia HFD35C series flash drive is a 3.5"" SCSI-II solid state /non-volatile data storage device based on the Hagiwara Solutions proprietary TRUESSD® controller and Toshiba Single-Level Cell (SLC) NAND Flash Technology. Supports capacities up to 8 GB. Fudia HFD35C series industrial grade SCSI SSD conforms to SCSI-II standard (ANSI X3.131-1994, ISO/IEC 9316:1995: Small Computer System Interface-2) and the SCSI-III/Ultra SCSI(ANSI X3.277-1996, ISO/IEC 14776-121 : SCSI-III Fast-20). |
|
 |
|
| Specifications | |
| Flash Type | SLC |
| 43 n.m. | |
| Support Capacity | 1 GB ~ 8 GB |
| Read/Write (Max.) Performance | Read: 17 MB/s |
| Write: 14 MB/s | |
| SCSI Interface | Single-Ended type, Narrow SCSI |
| SCSI-II Command set compatible | |
| SCSI-III (Fast20) SCSI bus timing values compliance | |
| Booting Feature | Booting feature from Windows OS |
| Transfer mode : | Async mode→ 5.0 MByte/sec (MAX) |
| Sync mode→ 5.0 MByte/sec (MAX) (Fast5) | |
| 10.0 MByte/sec (MAX) Fast SCSI mode (Fast10) | |
| 20.0 MByte/sec (MAX) Ultra SCSI mode (Fast20) | |
| Operation Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +65°C |
| Acoustic Noise | 0 db (at one meter) |
| Vibration | 15 G (20 ~ 2,000 Hz) |
| Humidity | 85% (MAX) non condensing |
| Shock | 1,000 G/0.5 ms |
| Power supply | DC 5V ± 5% |
| ECC scheme | Support 4/8 bits ECC error correction |
| Functions | Internal active terminator (ON/OFF switchable) |
| Multi-Segment Cache | |
| Static wear-leaveling | |
| Automatic error recovery capabilities | |
| ECC On The Fly | |
| Refresh Function | |
| Certificates Acquired | RoHS \ WHQL \ CE \ FCC |
| Remarks | |
