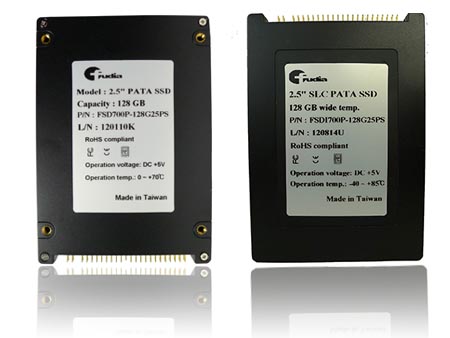

Fudia industrial grade 2.5"" PATA based FSD700P series SSD is a non-volatile, solid state data storage system, and has become a more popular storage media solution, compared to conventional Hard Disk Drive (HDD). Due to lack of any mechanical components, SSD provides a more robust and cost effective storage solution for any embedded application. Since SSD comes with a standard ATA interface which is fully compatible with traditional HDD, designers will find Fudia PATA based industrial grade 2.5"" SSD as an easy solution for integration in PC-based systems. Furthermore, Military Security Erases standards can be performed on Fudia FSD700P series PATA based industrial grade 2.5"" SSD by Software Commends also (*). Users can erase all data out of 32 GB SSD (SLC) within around 0.2 minutes with Quick Erase function. |
|||
 |
|||
| Specifications | |||
| Flash Type | SLC | MLC | |
| 43 n.m. | 32 n.m. | ||
| Capacity | 2 GB ~ 128 GB | 4 GB ~ 256 GB** | |
| Read/Write (Max.) Performance | Read: 88 MB/s | Read: 80 MB/s | |
| Write: 70 MB/s | Write: 45 MB/s | ||
| Operation Temperature | Normal temperature series → 0 ~ +70°C | ||
| Wide temperature series → -40 ~ +85°C | |||
| Storage Temperature | Normal temperature series → -40 ~ +85°C | ||
| Wide temperature series → -40 ~ +85°C | |||
| Vibration Resistance | 20 G (80 ~ 2,000 Hz) | ||
| Shock Resistance | 1,500 G (0.5 msec.) | ||
| Standard ATA/IDE BUS Interface | ATA Command set compatible | ||
| 512 Bytes/Sector | |||
| Data Transfer Mode | PIO mode 4 | ||
| Multiword DMA mode 2 | |||
| Ultra DMA mode 6 | |||
| Intelligent ATA/IDE Module | Implements dynamic wear-leveling algorithms and static wear- leveling algorithms to increase endurance of flash media. | ||
| Built in Embedded Flash File System. | |||
| Storage ECC hardware desgin, correcting up to 48 bits | |||
| random error per 2 K bytes. | |||
| Operating Voltage | DC 3.3V / 5V | ||
| Certificates Acquired | RoHS \ WHQL \ CE \ FCC | ||
| Remarks | |||
| * Military Security Erase Standards and Conformal Coating can be provided as optional solutions. | |||
| ** MLC solution is produced upon requested only. | |||
