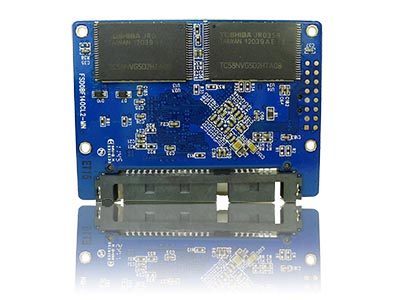

Fudia FSD700P series industrial grade Half Slim SATA SSD delivers all the advantages of Flash Disk technology with the Serial ATA II interface, fully compliant with standard half-slim SSD form factor. SATA Drives are replacing the older and slower (PATA) interface in embedded environments. Fudia FSD700P series industrial grade Half Slim SATA SSD is based on a standard 7 pins interface for data segment and 15 pins for power segment, designed to operate at a maximum operating frequency of 150 MHz with 30 MHz external crystal. Its capacity could provide a wide range from 1 GB to up to 128 GB. Also it can reach maximum 240 MB/s read as well as 190 MB/s write high performance based on MLC flash (with 64 MB DDR enabled and measured by CrystalDiskMark v3.0). The power consumption of Flash Disk is much lower than traditional Hard Drive. |
|||
Half Slim  |
|||
| Specifications | |||
| Flash Type | SLC | MLC | Ultra MLC |
| 43 n.m. | 32 n.m. | 32 n.m. | |
| Capacity | Support 48 bits addressing mode | ||
| 1 GB ~ 64 GB | 4 GB ~ 128 GB * | 4 GB ~ 64 GB * | |
| Read/Write (Max.) Performance | Read: 240 MB/s | Read: 240 MB/s | Read: 240 MB/s |
| Write: 180 MB/s | Write: 220 MB/s | Write: 220 MB/s | |
| Electrical/Physical Interface | SATA 1.5 Gbps and 3.0 Gbps interface | ||
| DDR I I/I interface | |||
| Flash I/O | 1.8 V and 3.3 V voltage levels flash I/O | ||
| 1.8 V for ONFI Flash | |||
| 3.3 V for conventional Asynchronous Flash | |||
| Controller Features | SATA Revision 2.6 compliant. | ||
| Compatible with SATA 1.5 Gbps and 3 Gbps interface. | |||
| Power management supported. | |||
| Support expanded register for SATA protocol 48 bits addressing mode. | |||
| Embedded BIST function of SATA PHY for low cost mass production. | |||
| NAND Flash Interface | Build in hardware ECC circuit (up to 48 bit/2 KB). | ||
| Support all types of SLC and MLC Large Block 8 KB/page NAND flash. | |||
| ONFI2.0 Interface support: 4 channels max. | |||
| Support 1 PC to 4 PCs TSOP/ULGA Flash chip enable. | |||
| Bus Width | 8/16 bits. | ||
| Built-in | Built-in 32 bits micro controller | ||
| DDR I interface | 16 bit data bus. | ||
| Date rate: 300 Mbps. | |||
| Capacity: 64 MB | |||
| Support | UART | ||
| GPIO | |||
| ECC scheme | Support 48/32/28 bits ECC correct per 2KB data | ||
| Operation Temperature | Normal temperature series → 0 ~ +70°C | ||
| Wide temperature series → -40 ~ +85°C | |||
| Storage Temperature | Normal temperature series → -40 ~ +85°C | ||
| Wide temperature series → -40 ~ +85°C | |||
| Humidity | RH = 95% under 55°C | ||
| Shock# | 1,500 G / 0.5 ms | ||
| Vibration# | 20 G (80 ~ 2,000 Hz) | ||
| Acoustic | 0 dB | ||
| Certificates Acquired | RoHS \ WHQL \ CE \ FCC | ||
| Remarks | |||
| *MLC and Ultra MLC products will be produced upon requested only. | |||
| # Subject to be changed without notice. | |||
