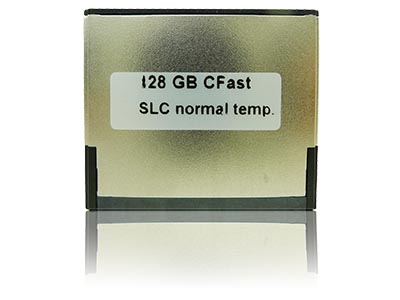

  Fudia SATA based industrial grade CFastTM combines the advantages of flash disk technology with the Serial ATA II interface, which electrically complies with the Serial ATA International Organization Standard. Given the features of the low power consumption, small form factor, and high shock-resistance, CFastTM are deemed to be widely adopted as the next mainstream storage device for embedded solutions, and will be an attractive solution to replace the conventional [PATA-interfaced] CompactFlash card in industrial applications or markets where performance is a major concern.

  Fudia SATA based industrial grade CFastTM , consisting of a SATA-based 7 pins standard interface for data segment and 17 pins for power and controller segment, is designed to operate at a maximum operating frequency of 150 MHz with 30 MHz external crystal Fudia SATA based industrial grade CFastTM comes with a wide range of capacities up to 32 GB, and delivers the read/write performance of 70 MB/s and 60 MB/s, respectively based on Toshiba 24 nm legacy flash. Fudia SATA based industrial grade CFastTM is the perfect solution for retail/commercial markets, as well as embedded designs.

Specifications
Flash Type SLC MLC Ultra MLC
43 n.m. 32 n.m. 32 n.m.
Capacity Support 48 bits addressing mode
1 GB ~32 GB 4 GB ~ 256 GB * 4 GB ~ 128 GB *
Read/Write (Max.) Performance Read: 240 MB/s Read: 240 MB/s Read: 240 MB/s
Write: 180 MB/s Write: 220 MB/s Write: 220 MB/s
Electrical/Physical Interface SATA 1.5G bps and 3G bps interface.
Flash I/O 1.8 V and 3.3 V voltage level
DC 3.3 V for conventional Asynchronous Flash
Controller Features SATA II SATA Revision 2.6 compliant.
Compatible with SATA 1.5 Gbps and 3 Gbps interface.
Power management supported.
Support expanded register for SATA protocol 48 bits addressing mode.
Embedded BIST function of SATA PHY for low cost mass production.
NAND Flash Interface Build-in hardware ECC circuit (up to 44 bits/1 KB)
Support all types of SLC and MLC with large block of 4/8/16 KB per page NAND Flash
Bus Width 8/16 bits.
Built-in Built-in 32 bits micro controller
Support UART
Support 10 GPIO pins
ECC scheme Support 44 bits ECC correct per 1 KB data
Built-in 32 bits micro controller
Operation Temperature Normal temperature series → 0 ~ +70°C
Wide temperature series → -40 ~ +70°C
Storage Temperature Normal temperature series →-40 ~ +85°C
Wide temperature series → -40 ~ +85°C
Humidity RH = 95% under 55°C
Shock# 1,500 G / 0.5 ms
Vibration# 20 G (80 ~ 2,000 Hz)
Acoustic 0 dB
Support Support Hot-Swapping technique
Certificates Acquired RoHS \ WHQL \ CE \ FCC
Remarks
*MLC and Ultra MLC products will be produced upon requested only.
# Subject to be changed without notice.
