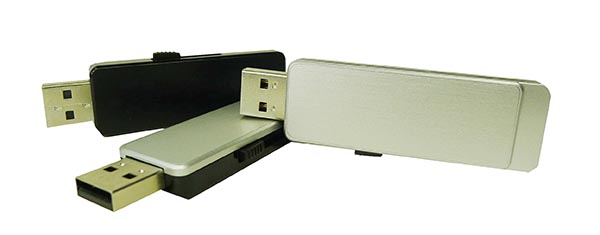

  Fudia industrial grade UD700P series USB Drive is a removable flash disk drive with USB connection and can support various storage capacities.Fudia industrial grade UD700P series USB Drive is based on USB 2.0 controller which supports USB 2.0 & 1.1 and interface to NAND Flash Memory.

  Fudia industrial grade UD700P series USB Drive is a plug and play device, simply plug it into any USB port and it will automatically get detected by the computer as a removable drive. You can read, write, copy delete and move data from your hard disk drive to Fudia industrial grade UD700P series USB Drive, or from Fudia industrial grade UD700P series USB Drive to hard disk drive with the high speed of USB 2.0

Specifications
Flash Type SLC MLC
43 n.m. 24 n.m
USB Interface Host Interfaces: USB 2.0 & 1.1 Interface
Support Capacity 1 GB ~ 64 GB 4 GB ~ 128 GB
Read/Write (Max.) Performance Read: 21.7 MB/s Read: 21.5 MB/s
Write: 10.5 MB/s Write: 10.2 MB/s
Support OS Windows 2000 SP4, Windows XP, Vista and Windows 7 without device driver
MAC OS X and later without device drive (USB 1.1 speed).
MAC OS 10.2.8 and later without device driver (USB 2.0 speed).
Linux Kernel ver 2.4.0 or above without device driver (USB 1.1speed).
Linux Kernel ver 2.4.10 or above without device driver (USB 2.0 speed).
Support Hot plug and play
Transfer Rate For USB Interface High speed --- 480 Mbit/second supporting for USB 2.0
Full speed ---- 12 Mbit/second supporting for USB 1.1
Durable Solid-State Storage Data retention up to 10 years
Acoustic Noise 0 db (at one meter)
Attitude 80,000 feet (relative to sea level)
Vibration 15 G peak to peak max
Performance Lowe power consumption
Power Required No external power is required
DC 4.5 V ~ 5.5 V from USB port.
Operating Temperature 0 ~ 70 ℃
Dimention(W*L*H) Depends on housing
Certificates Acquired RoHS \ WHQL \ CE \ FCC
Remarks
