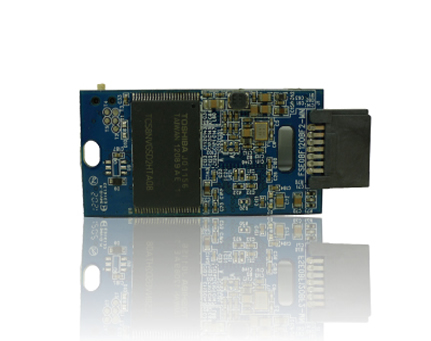

  Fudia FSD700P series industrial grade SATA DOM delivers all the advantages of Flash Disk technology with the Serial ATA I/II interface, including the smallest form factor and the option of adding DDR II for enhanced random performance. Fudia FSD700P series industrial grade SATA DOM is designed with the form factor of 7 pins SATA signals and could be mounted directly to Host without any effort.

  Moreover, Fudia FSD700P series SATA DOM can be operated at a maximum operating frequency of 120 MHz with 30 MHz external crystal, as well as coming with a wide range of product capacity (up to 64 GB). Fudia FSD700 P series SATA DOM offers the performance up to 180 MB/s for read and 75 MB/s for write based on Toshiba 24 nm ONFI/Toggle NAND.

Specifications
Flash Type SLC MLC Ultra MLC
43 n.m. 32 n.m. 32 n.m.
Form Factor Vertical Type
Capacity Support 48 bits addressing mode
1 GB ~ 64 GB 4 GB ~ 64 GB * 4 GB ~ 32 GB *
Read/Write (Max.) Performance Read: 240 MB/s Read: 240 MB/s Read: 240 MB/s
Write: 180 MB/s Write: 220 MB/s Write: 220 MB/s
Electrical/Physical Interface SATA 1.5 Gbps and 3.0 Gbps interface
DDR II I/O interface
Flash I/O 1.8 V and 3.3 V voltage levels flash I/O
1.8 V for ONFI Flash
3.3 V for conventional Asynchronous Flash
DDR II Interface 16 bit data bus.
Data Rate: 480 Mbps.
Capacity: 64 MB
NAND Flash Interface Build in hardware ECC circuit (up to 44 bits/1 KB).
Support all types of SLC and MLC Large Block 4/8/16 KB/page NAND flash.
ONFI2.0 Interface support: 4 channels max.
Bus Width 8/16 bits.
Controller Features SATA Revision 2.6 compliant.
Compatible with SATA 1.5 Gbps and 3 Gbps interface.
Power management supported.
Support expanded register for SATA protocol 48 bits addressingmode.
Embedded BIST function of SATA PHY for low cost mass
production.
Built-in Built-in 32 bits micro controller
Support UART
GPIO
ECC scheme Support 44 bits ECC correct per 1KB data
Performance With the advantage of 4 chip-enables, the performance canreach 180 MB/S for sequential read and 75 MB/S for sequential write.
With 64 MB DDR II cache buffer.
Operation Temperature Normal temperature series → 0 ~ +70°C
Wide temperature series → -40 ~ +85°C
Storage Temperature Normal temperature series → -40 ~ +85°C
Wide temperature series → -40 ~ +85°C
Humidity RH = 95% under 55°C
Shock# 1,500 G / 0.5 ms
Vibration# 20 G (80 ~ 2,000 Hz)
Acoustic 0 dB
Certificates Acquired RoHS \ WHQL \ CE \ FCC
Remarks
*MLC and Ultra MLC products will be produced upon requested only.
# Subject to be changed without notice.
