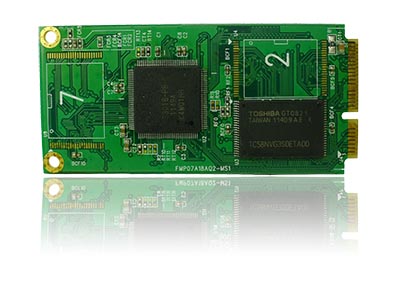

Fudia PATA based FSD700P series PCIe SSD is a non-volatile, solid state data storage system, and has become a more popular storage media solution, compared to conventional Hard Disk Drive (HDD). Due to lack of any mechanical components, PCIe provides a more robust and cost effective storage solution for any embedded application. Since Fudia PATA based FSD700P series PCIe SSD comes with a standard ATA interface which is fully compatible with traditional HDD, designers will find Fudia PATA FSD700P series based PCIe SSD as an easy solution for integration in PC-based systems. |
||
.files/image026.png) |
||
| Specifications | ||
| Flash Type | SLC | MLC |
| 43 n.m. | 32 n.m. | |
| Capacity | 1 GB ~ 32 GB | 4 GB ~ 128 GB* |
| Read/Write (Max.) Performance | Read: 88 MB/s | Read: 80 MB/s |
| Write: 70 MB/s | Write: 45 MB/s | |
| Operation Temperature | Normal temperature series → 0 ~ +70°C | |
| Wide temperature series → -25 ~ +85°C | ||
| Storage Temperature | Normal temperature series → -40 ~ +85°C | |
| Wide temperature series → -40 ~ +85°C | ||
| Vibration Resistance | 20 G (80 ~ 2,000 Hz) | |
| Shock Resistance | 1,500 G (0.5 msec.) | |
| Standard ATA/IDE BUS interface | ATA Command set compatible | |
| 512 Bytes/Sector | ||
| Selectable Master/Slave setting | ||
| Data Transfer Mode | PIO mode 4 | |
| Multiword DMA mode 2 | ||
| Ultra DMA mode 6 | ||
| Intelligent ATA/IDE Module | Implements dynamic wear-leveling algorithms and static wear- leveling algorithms to increase endurance of flash media. | |
| Built in Embedded Flash File System. | ||
| Storage ECC hardware desgin, correcting up to 48 bits | ||
| random error per 2 K bytes. | ||
| Operating Voltage | DC 3.3V | |
| Certificates Acquired | RoHS \ WHQL \ CE \ FCC | |
| Remarks | ||
| *MLC products will be only produced upon requested. | ||
