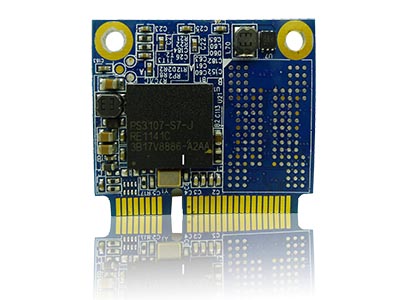

Fudia FSD700P series industrial grade mSATA mini SSD delivers all the advantages of Flash Disk technology with the Serial ATA I/II interface, fully compliant with standard mSATA form factor. SATA Drives are replacing the older and slower (PATA) interface in embedded environments. Fudia FSD700P series mSATA mini SSD is based on the mSATA form factor which is generated by JEDEC, designed to operate at a maximum operating frequency of 120 MHz with 30M Hz external crystal. Its capacity could provide a wide range up to 64 GB. Also it can reach up to 180 MB/s read as well as 70 MB/s write high performance based on MLC flash (with 64 MB DDR II enabled). The power consumption of Flash Disk is much lower than traditional hard drive. |
|||
 |
|||
| Specifications | |||
| Flash Type | SLC | MLC | Ultra MLC |
| 43 n.m. | 32 n.m. | 32 n.m. | |
| Capacity | Support 48 bits addressing mode | ||
| 1 GB ~32 GB | 4 GB ~ 64 GB * | 4 GB ~ 32 GB * | |
| Read/Write (Max.) Performance | Read: 240 MB/s | Read: 240 MB/s | Read: 240 MB/s |
| Write: 180 MB/s | Write: 220 MB/s | Write: 220 MB/s | |
| Electrical/Physical Interface | SATA 1.5 Gbps and 3.0 Gbps interface. | ||
| DDR II I/O interface | |||
| Flash I/O | 1.8 V and 3.3 V voltage levels flash I/O | ||
| 1.8 V for ONFI Flash | |||
| 3.3 V for conventional Asynchronous Flash | |||
| Controller Features | SATA Revision 2.6 compliant. | ||
| Compatible with SATA 1.5 Gbps and 3 Gbps interface. | |||
| Power management supported. | |||
| Support expanded register for SATA protocol 48 bits addressing mode. | |||
| Embedded BIST function of SATA PHY for low cost massproduction. | |||
| NAND Flash Interface | Build in hardware ECC circuit (up to 44 bits/1 KB). | ||
| Support SLC and MLC Large Block 4/8/16 KB/page NAND flash. | |||
| ONFI2.0 Interface support: 4 channels max. | |||
| Bus Width | 8/16 bits. | ||
| Performance | With the advantage of 4 chip-enables, the performance can reach 180 MB/s for sequential read and 70 for sequential write. | ||
| DDR II interface | 16 bits data bus. | ||
| Data Rate→480 Mbps. | |||
| Capacity→64 MB/ 128 MB | |||
| Built-in | 32 bits micro controller | ||
| Support | UART | ||
| GPIO | |||
| ECC scheme | 44 bits ECC correct per 1K Byte data | ||
| Operation Temperature | Normal temperature series → 0 ~ +70°C | ||
| Wide temperature series → -40 ~ +85°C | |||
| Storage Temperature | Normal temperature series → -40 ~ +85°C | ||
| Wide temperature series → -40 ~ +85°C | |||
| Humidity | RH = 95% under 55°C | ||
| Shock# | 1,500 G / 0.5 ms | ||
| Vibration# | 20G (80 ~ 2,000 Hz) | ||
| Acoustic | 0 dB | ||
| Certificates Acquired | RoHS \ WHQL \ CE \ FCC | ||
| Remarks | |||
| *MLC and Ultra MLC products will be produced upon requested only. | |||
| # Subject to be changed without notice. | |||
