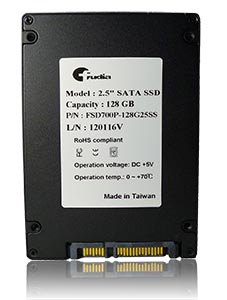

Fudia SATA based FSD700P series industrial grade 2.5"" SATA SSD delivers all the advantages of Flash Disk technology with Serial ATA II interface, fully compliant with standard 2.5"" form factor. Fudia SATA based FSD700P series industrial grade 2.5"" SATA SSD is based on a standard 7 pins interface for data segment and 15 pins for power segment, designed to operate at a maximum operating frequency of 150 MHz with 30 MHz external crystal. Its capacity could provide a wide range from 1 GB (SLC) to up to 256 GB (MLC). The power consumption of Flash Disk is much lower than traditional Hard Drive. In addition, Fudia 2.5"" SATA SSD provides hot-swapping abilities when removing, replacing or upgrading flash disks. |
||
 |
||
| Specifications | ||
| Flash Type | SLC | MLC |
| 43 n.m. | 32 n.m. | |
| Capacity | Support 48 bits addressing mode | |
| 1 GB ~32 GB | 4 GB ~ 256 GB * | |
| Read/Write (Max.) Performance | Read: 240 MB/s | Read: 240 MB/s |
| Write: 180 MB/s | Write: 220 MB/s | |
| Electrical/Physical Interface | SATA 1.5G bps and 3G bps interface. | |
| DDR I I/O interface | ||
| mobile-DDR I/O interface | ||
| Flash I/O | 1.8 V and 3.3 V voltage level | |
| 1.8 V for ONFI Flash | ||
| DC 3.3 V for conventional Asynchronous Flash | ||
| Controller Features | SATA Revision 2.6 compliant. | |
| SATA II | Compatible with SATA 1.5 Gbps and 3 Gbps interface. | |
| Power management supported. | ||
| Support expanded register for SATA protocol 48 bits addressing mode. | ||
| Embedded BIST function of SATA PHY for low cost mass production. | ||
| NAND Flash Interface | Build-in hardware ECC circuit (48 bits/2 KB) | |
| Support all types of SLC and MLC NAND Flash | ||
| ONFI 2.0 Interface support: 5 channels max, mode 2 | ||
| Support 16 Flash chips enable | ||
| Bus width: | 8/16 bits | |
| DDR I interface | 16 bits data bus | |
| Data rates: 320 Mbps | ||
| Bandwidth: 640 MB/s | ||
| Support capacity: 32 and 64 MB | ||
| Mobile-DDR Interface | 32 bit data bus | |
| Data Rate: 320 Mbps | ||
| Bandwidth: 1,280 MB/s | ||
| Support Capacity: 32/64/128/256 MB | ||
| Built-in | Built-in 32 bits micro controller | |
| Support | UART | |
| Support 10 GPIO pins | ||
| Support TRIM command | ||
| Support SMART command | ||
| ECC scheme | Support 48/32/28 bits ECC correct per 2 KB data | |
| Operation Temperature | Normal temperature series → 0 ~ +70°C | |
| Wide temperature series → -40 ~ +70°C | ||
| Storage Temperature | Normal temperature series →-40 ~ +85°C | |
| Wide temperature series → -40 ~ +85°C | ||
| Humidity | RH = 95% under 55°C | |
| Shock# | 1,500 G / 0.5 ms | |
| Vibration# | 20 G (80 ~ 2,000 Hz) | |
| Acoustic | 0 dB | |
| Support | Support Hot-Swapping technique | |
| Certificates Acquired | RoHS \ WHQL \ CE \ FCC | |
| Remarks | ||
| *MLC and Ultra MLC products will be produced upon requested only. | ||
| # Subject to be changed without notice. | ||
