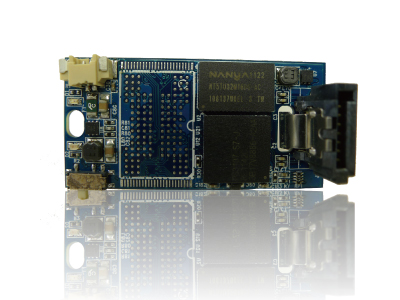

Fudia FSD700P series industrial grade SATA DOM delivers all the advantages of Flash Disk technology with the Serial ATA I/II interface, including the smallest form factor and the option of adding DDR II for enhanced random performance. Fudia FSD700P series industrial grade SATA DOM is designed with the form factor of 7 pins SATA signals and could be mounted directly to Host without any effort. Moreover, Fudia FSD700P series SATA DOM can be operated at a maximum operating frequency of 120 MHz with 30 MHz external crystal, as well as coming with a wide range of product capacity (up to 64 GB). Fudia FSD700 P series SATA DOM offers the performance up to 180 MB/s for read and 75 MB/s for write based on Toshiba 24 nm ONFI/Toggle NAND. |
|||
 |
|||
| Specifications | |||
| Flash Type | SLC | MLC | Ultra MLC |
| 43 n.m. | 32 n.m. | 32 n.m. | |
| Form Factor | Horizontal Reversed Type | ||
| Capacity | Support 48 bits addressing mode | ||
| 1 GB ~ 64 GB | 4 GB ~ 64 GB * | 4 GB ~ 32 GB * | |
| Read/Write (Max.) Performance | Read: 240 MB/s | Read: 240 MB/s | Read: 240 MB/s |
| Write: 180 MB/s | Write: 220 MB/s | Write: 220 MB/s | |
| Electrical/Physical Interface | SATA 1.5 Gbps and 3.0 Gbps interface | ||
| DDR II I/O interface | |||
| Flash I/O | 1.8 V and 3.3 V voltage levels flash I/O | ||
| 1.8 V for ONFI Flash | |||
| 3.3 V for conventional Asynchronous Flash | |||
| DDR II Interface | 16 bit data bus. | ||
| Data Rate: 480 Mbps. | |||
| Capacity: 64 MB | |||
| NAND Flash Interface | Build in hardware ECC circuit (up to 44 bits/1 KB). | ||
| Support all types of SLC and MLC Large Block 4/8/16 KB/page NAND flash. | |||
| ONFI2.0 Interface support: 4 channels max. | |||
| Bus Width | 8/16 bits. | ||
| Controller Features | SATA Revision 2.6 compliant. | ||
| Compatible with SATA 1.5 Gbps and 3 Gbps interface. | |||
| Power management supported. | |||
| Support expanded register for SATA protocol 48 bits addressingmode. | |||
| Embedded BIST function of SATA PHY for low cost mass | |||
| production. | |||
| Built-in | Built-in 32 bits micro controller | ||
| Support | UART | ||
| GPIO | |||
| ECC scheme | Support 44 bits ECC correct per 1KB data | ||
| Performance | With the advantage of 4 chip-enables, the performance canreach 180 MB/S for sequential read and 75 MB/S for sequential write. | ||
| With 64 MB DDR II cache buffer. | |||
| Operation Temperature | Normal temperature series → 0 ~ +70°C | ||
| Wide temperature series → -40 ~ +85°C | |||
| Storage Temperature | Normal temperature series → -40 ~ +85°C | ||
| Wide temperature series → -40 ~ +85°C | |||
| Humidity | RH = 95% under 55°C | ||
| Shock# | 1,500 G / 0.5 ms | ||
| Vibration# | 20 G (80 ~ 2,000 Hz) | ||
| Acoustic | 0 dB | ||
| Certificates Acquired | RoHS \ WHQL \ CE \ FCC | ||
| Remarks | |||
| *MLC and Ultra MLC products will be produced upon requested only. | |||
| # Subject to be changed without notice. | |||
